Pumpcrete
Pumpcrete yog lub siab -kev ua tau zoo pob zeb twj tso kua mis rau siab- nce thiab loj- cov haujlwm loj, ua kom ruaj khov ntev - kev xa khoom nyob deb thiab tiv thaiv cov yeeb nkab thaiv.
Hauj lwm lawm
Taw qhia
Pumpcrete yog lub siab -kev ua tau zoo pob zeb twj tso kua mis rau siab- nce thiab loj- cov haujlwm loj, ua kom ruaj khov ntev - kev xa khoom nyob deb thiab tiv thaiv cov yeeb nkab thaiv.
Nta
High Wear-Cov khoom tiv thaiv
Hard alloy hnav daim hlau thiab txiav rings, tsis siv neeg sib txawv them nyiaj, txo txij nkawm downtime, thiab txo nqi khiav hauj lwm.
Intelligent Control
Electro- hydraulic integrated tswj system nrog kev tiv thaiv overload thiab ntsuas ntsuas, thiab thim rov qab ua haujlwm rau kev tshem tawm cov yeeb nkab txhaws.
Lub twj tso kua mis ruaj khov
Dual-pump, dual-circuit hydraulic system xyuas kom meej thiab txhim khu kev thim rov qab, nrog kev hloov twj tso kua mis ceev kom tau raws li qhov xav tau ntawm cov pob zeb sib txawv thiab kev tsim kho.
Lub neej ua haujlwm ntev
Lub hauv nruab nrab lubrication system nrog kev tswj tsis siv neeg txo qis hnav, tiv thaiv hydraulic xau, thiab txhim kho tag nrho cov tshuab kev ntseeg siab.
Siv tau zoo
Ceev- tso tawm clamp tsim ua kom yooj yim rau kev teeb tsa thiab tshem tawm cov yeeb nkab, txuag lub sijhawm tsim kho.
Steel Plate Protection Design (Yeem)
Kev tiv thaiv hlau phaj tuaj yeem tsim raws li cov neeg siv khoom xav tau los tiv thaiv kev sib tsoo pob zeb rau hauv lub twj tso kua mis lub cev thiab tswj kev huv.
Parameter
|
Yam khoom |
Chav tsev |
HBTS 80-18-132R |
|
Max. Theoretical Concrete Output (qis / siab) |
m³/h |
84/50 |
|
Max. Qhob Pumping siab (tsawg / siab) |
Mpa |
10/18 |
|
Pob zeb poob |
mm |
100-230 |
|
Aggregate Size |
mm |
Gravel Less dua lossis sib npaug rau 40 Pebble Tsawg dua lossis sib npaug rau 50 |
|
Lub cav fais fab |
kws |
132 |
|
Main roj twj tso kua mis |
KAWASAKI |
|
|
Hydraulic valve |
BOLSEEN |
|
|
Hydraulic hose |
MANULI |
|
|
Lub ntsiab hluav taws xob |
SCHNEIDER |
|
|
PLC tswj lub computer |
MITSUBISHI |
|
|
Lub tog raj kheej taub |
mm |
200/1600 |
|
Hopper Peev Xwm |
L |
500 |
|
Filling Qhov siab |
mm |
1400 |
|
Max Theoretical Conveying Distance (kab rov tav / ntsug qhov siab) |
m |
1200/200 |
|
Cov yeeb nkab ntxuav hom |
|
Ntxuav dej |
|
Dimension (kev thauj mus los) |
mm |
6200×2100×2200 |
|
Qhov hnyav tag nrho |
kg |
6250 |
Pumpcrete hauv cov ntsiab lus
Tsim los ntawm cov hlau phaj raws li cov neeg siv khoom xav tau los tiv thaiv cov pob zeb los ntawm kev txaws rau hauv lub tog raj kheej lossis lub cev ntawm lub twj tso kua mis, ua kom huv si.
Kev them nyiaj yug daim hlau tsim ntawm lub qhov hluav taws xob los tiv thaiv cov pob zeb los ntawm kev poob rau hauv av, ua kom cov av huv si thiab ua kom yooj yim rau cov neeg ua haujlwm taug kev thiab tiv thaiv kom tsis txhob ntog.
Ceev- hom clamps los txhim kho kev tsim kho kev ua haujlwm, txuag lub sijhawm rau cov yeeb nkab txuas.
Case Success:
Kev xa khoom:

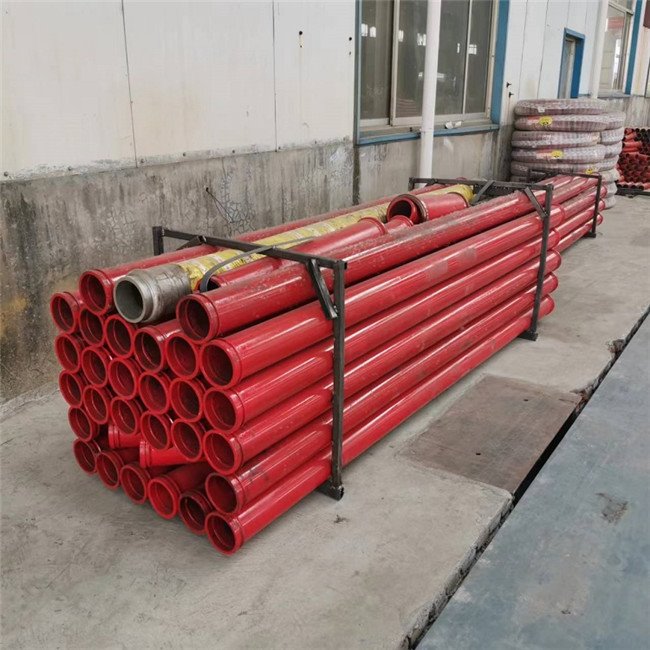

Peb muaj ib pab neeg ua haujlwm loading. Ib lub thawv 40ft tuaj yeem thauj khoom 2 units ntawm cov twj tso kua mis thiab 150m ntawm cov kav dej xa khoom, txuag koj tus nqi xa khoom zoo heev.
Qualification Pumpcrete:
Daim Ntawv Pov Thawj E tuaj yeem muaj.
Hais txog kev ua haujlwm: Programmable Logic Controller, hluav taws xob tswj qhov system nrog lub teeb pom kev txhaum, ua kom yooj yim los xyuas cov teeb meem thaum ua haujlwm.
Kev xa khoom & Logistics
Ib pab neeg ua haujlwm thauj khoom kom muaj kev nyab xeeb ntawm cov khoom siv.
Lub thawv 40ft tuaj yeem ua tau 2 lub twj tso kua mis + 150 meters ntawm cov kav dej xa khoom.
Ntiaj teb no tej khoom xa tuaj muaj; kev thauj mus los tuaj yeem npaj tau raws li lub sijhawm ua haujlwm.
Certifications & Quality Assurance
Daim ntawv pov thawj E yog muaj.
Lub Hoobkas tsim nruj me ntsis ua raws li cov qauv kev lag luam.
Cov khoom siv lub Hoobkas tshuaj xyuas cov ntaub ntawv thiab kev ruaj ntseg zoo yog muab.
FAQ
Cim npe nrov: Pumpcrete, Tuam Tshoj Pumpcrete manufacturers, lwm tus neeg, Hoobkas
